compound 4b [PMID: 40259683]   Click here for help

GtoPdb Ligand ID: 13929

Compound class: Synthetic organic
Comment: Compound 4b is the lead from a series of inhibitors of Mycobacterium tuberculosis leucyl-tRNA synthetase [1].

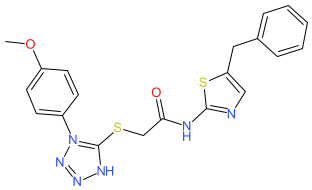

2D Structure
Click here for help

2D Structure

An image of the ligand's 2D structure. For small molecules with SMILES these are drawn using the NCI/CADD Chemical Identifier Resolver. Click on the image to access the chemical structure search tool with the ligand pre-loaded in the structure editor. For other types of ligands, e.g. longer nucleotides and peptides, a manually drawn representation of the molecule may be provided.

✖
Click here for structure editor
Physico-chemical Properties
Click here for help

Physico-chemical Properties

Calculated molecular properties are available for small molecules and natural products (not peptides). Properties were generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/). All properties were selected to enable the prediction of the Lipinski Rule-of-Five profile or ‘druglikeness’ for each ligand. For more info on each category see the help pages.

✖
Hydrogen bond acceptors 8
Hydrogen bond donors 2
Rotatable bonds 9
Topological polar surface area 138.04
Molecular weight 439.54
XLogP 0.82
No. Lipinski's rules broken 0

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)
SMILES / InChI / InChIKey
Click here for help

SMILES / InChI / InChIKey

SMILES (Simplified Molecular Input Line Entry Specification) A specification for unambiguously describing the structure of chemical molecules using short ASCII strings. Canonical SMILES specify a unique representation of the 2D structure without chiral or isotopic specifications. Isomeric SMILES include chiral specification and isotopes.

Standard InChI (IUPAC International Chemical Identifier) and InChIKey InChI is a non-proprietary, standard, textual identifier for chemical substances designed to facilitate linking of information and database searching. An InChIKey is a simplified version of a full InChI, designed for easier web searching.

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)

✖
Canonical SMILES COC1=CC=C(C=C1)[N]2=C(NN=N2)SCC(=O)NC3=NC=C(CC4=CC=CC=C4)S3
Isomeric SMILES COC1=CC=C(C=C1)[N]2=C(NN=N2)SCC(=O)NC3=NC=C(CC4=CC=CC=C4)S3
InChI InChI=1S/C20H19N6O2S2/c1-28-16-9-7-15(8-10-16)26-20(23-24-25-26)29-13-18(27)22-19-21-12-17(30-19)11-14-5-3-2-4-6-14/h2-10,12H,11,13H2,1H3,(H,21,22,27)(H,23,24,25)
InChI Key DDFIUNKOZYAFPD-UHFFFAOYSA-N

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)
Classification Click here for help
Compound class Synthetic organic
IUPAC Name Click here for help
N-(5-Benzyl-thiazol-2-yl)-2-[4-(4-methoxy-phenyl)-1H-tetrazol-5-ylsulfanyl]-acetamide
Database Links Click here for help
Search Google for chemical match using the InChIKey DDFIUNKOZYAFPD-UHFFFAOYSA-N
Search Google for chemicals with the same backbone DDFIUNKOZYAFPD
UniChem Compound Search for chemical match using the InChIKey DDFIUNKOZYAFPD-UHFFFAOYSA-N
UniChem Connectivity Search for chemical match using the InChIKey DDFIUNKOZYAFPD-UHFFFAOYSA-N
