BMS-986238   Click here for help

GtoPdb Ligand ID: 13877

Synonyms: BMS 986238 | BMS986238
Immunopharmacology Ligand
Compound class: Peptide
Comment: BMS-986238 is a macrocyclic peptide that inhibits programmed death-ligand 1 (PD-L1) [3]. It was designed as an alternative to anti-PD-L1 monoclonal antibodies and is a preclinical lead. Related structures are claimed in Bristol-Myers Squibb's patent WO2016077518A1 [1] with thioether peptide synthetic procedures described in [2].

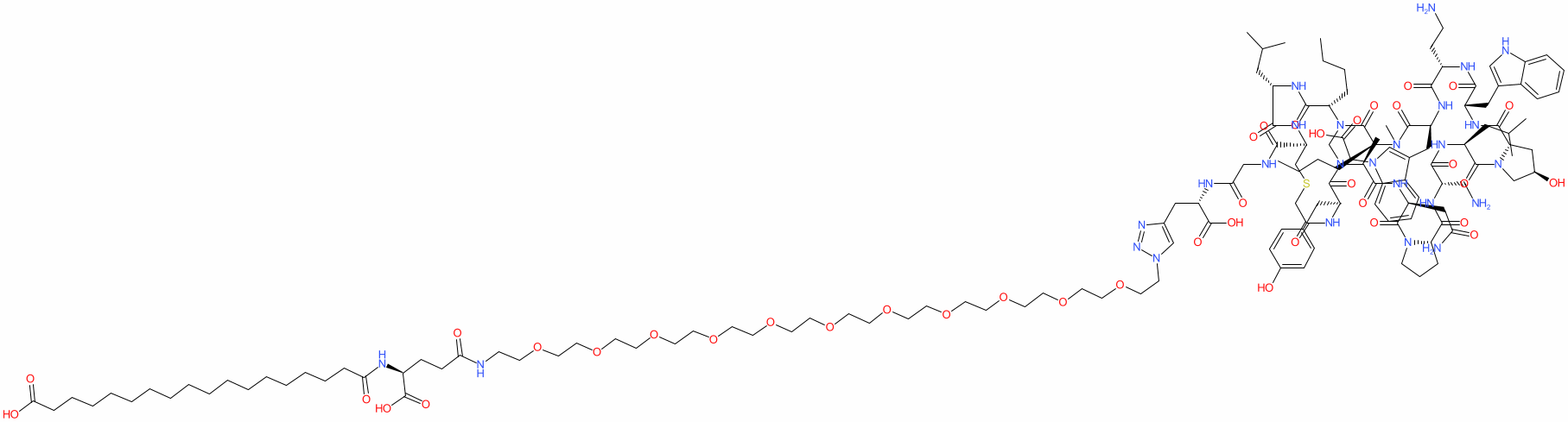

2D Structure
Click here for help

2D Structure

An image of the ligand's 2D structure. For small molecules with SMILES these are drawn using the NCI/CADD Chemical Identifier Resolver. Click on the image to access the chemical structure search tool with the ligand pre-loaded in the structure editor. For other types of ligands, e.g. longer nucleotides and peptides, a manually drawn representation of the molecule may be provided.

✖
Click here for structure editor
SMILES / InChI / InChIKey
Click here for help

SMILES / InChI / InChIKey

SMILES (Simplified Molecular Input Line Entry Specification) A specification for unambiguously describing the structure of chemical molecules using short ASCII strings. Canonical SMILES specify a unique representation of the 2D structure without chiral or isotopic specifications. Isomeric SMILES include chiral specification and isotopes.

Standard InChI (IUPAC International Chemical Identifier) and InChIKey InChI is a non-proprietary, standard, textual identifier for chemical substances designed to facilitate linking of information and database searching. An InChIKey is a simplified version of a full InChI, designed for easier web searching.

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)

✖
Canonical SMILES CCCC[C@H]1C(=O)N[C@@H](CC(C)C)C(=O)N[C@@H](CSCC(=O)N[C@@H](CC2=CC=C(C=C2)O)C(=O)N(C)[C@@H](C)C(=O)N[C@@H](CC(=O)N)C(=O)N3CCC[C@H]3C(=O)N[C@@H](CN)C(=O)N[C@@H](CC(C)C)C(=O)N4C[C@@H](C[C@H]4C(=O)N[C@@H](CC5=CNC6=C5C=CC=C6)C(=O)N[C@@H](CCN)C(=O)N[C@@H](CC7=CN(CC(=O)O)C8=C7C=CC=C8)C(=O)N(C)[C@@H](CCCC)C(=O)N1C)O)C(=O)NCC(=O)N[C@@H](CC9=CN(CCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCNC(=O)CC[C@@H](C(=O)O)NC(=O)CCCCCCCCCCCCCCCCC(=O)O)N=N9)C(=O)O
Isomeric SMILES CCCC[C@H]1C(=O)N[C@H](C(=O)N[C@@H](CSCC(=O)N[C@H](C(=O)N([C@H](C(=O)N[C@H](C(=O)N2CCC[C@H]2C(=O)N[C@H](C(=O)N[C@H](C(=O)N3C[C@@H](C[C@H]3C(=O)N[C@H](C(=O)N[C@H](C(=O)N[C@H](C(=O)N([C@H](C(=O)N1C)CCCC)C)CC4=CN(C5=CC=CC=C54)CC(=O)O)CCN)CC6=CNC7=CC=CC=C76)O)CC(C)C)CN)CC(=O)N)C)C)CC8=CC=C(C=C8)O)C(=O)NCC(=O)N[C@@H](CC9=CN(N=N9)CCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCNC(=O)CC[C@@H](C(=O)O)NC(=O)CCCCCCCCCCCCCCCCC(=O)O)C(=O)O)CC(C)C
InChI InChI=1S/C143H224N26O40S/c1-11-13-37-117-134(187)154-107(76-93(3)4)131(184)160-115(129(182)149-86-124(175)152-113(143(197)198)81-99-88-167(162-161-99)53-55-200-57-59-202-61-63-204-65-67-206-69-71-208-73-75-209-74-72-207-70-68-205-66-64-203-62-60-201-58-56-199-54-51-147-122(173)48-47-106(142(195)196)150-123(174)41-27-25-23-21-19-17-15-16-18-20-22-24-26-28-42-126(177)178)91-210-92-125(176)151-110(78-96-43-45-100(170)46-44-96)137(190)163(8)95(7)128(181)156-112(83-121(146)172)139(192)168-52-33-40-118(168)135(188)159-114(84-145)133(186)157-109(77-94(5)6)140(193)169-89-101(171)82-120(169)136(189)155-108(79-97-85-148-104-36-31-29-34-102(97)104)132(185)153-105(49-50-144)130(183)158-111(138(191)165(10)119(38-14-12-2)141(194)164(117)9)80-98-87-166(90-127(179)180)116-39-32-30-35-103(98)116/h29-32,34-36,39,43-46,85,87-88,93-95,101,105-115,117-120,148,170-171H,11-28,33,37-38,40-42,47-84,86,89-92,144-145H2,1-10H3,(H2,146,172)(H,147,173)(H,149,182)(H,150,174)(H,151,176)(H,152,175)(H,153,185)(H,154,187)(H,155,189)(H,156,181)(H,157,186)(H,158,183)(H,159,188)(H,160,184)(H,177,178)(H,179,180)(H,195,196)(H,197,198)/t95-,101+,105-,106-,107-,108-,109-,110-,111-,112-,113-,114-,115-,117-,118-,119-,120-/m0/s1
InChI Key IQRNUGWYTJONBD-LJOMSQDUSA-N

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)
Classification Click here for help
Compound class Peptide
Ligand families/groups Immune checkpoint modulators
Synonyms Click here for help
BMS 986238 | BMS986238
Database Links Click here for help
CAS Registry No. 2919596-13-5
GtoPdb PubChem SID 513757562
PubChem CID 172991800
Search Google for chemical match using the InChIKey IQRNUGWYTJONBD-LJOMSQDUSA-N
Search Google for chemicals with the same backbone IQRNUGWYTJONBD
UniChem Compound Search for chemical match using the InChIKey IQRNUGWYTJONBD-LJOMSQDUSA-N
UniChem Connectivity Search for chemical match using the InChIKey IQRNUGWYTJONBD-LJOMSQDUSA-N
